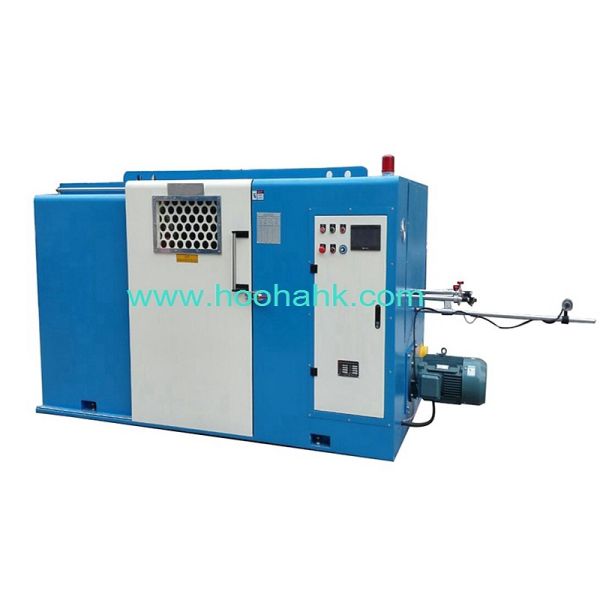

Wire And Cable Machinery Thailand Parallel Cable Manufacturing Machine
Flat twin-cord wire: twin cores, 3 cores ,PVC insulated single or multiple copper conductors,sheathed with PVC layers.
1. Construction:Solid Bare Copper Conductor or copper wire stranded,PVC Insulated (yellow + green ,black,white etc)
A.bare copper conductor stranded:
Suitable for above seven strand of the silver jacketed wire, tinned wire, enameled wire, bare copper wire, copper-clad steel, copper cladding aluminum .
2. PVC insulated --80 +35 cable extrusion machine
Application: Suit for PVC/PE plastic extrusion,maily used in fire alam cable,electrical wire,house wire,data cable,network cable etc insulation.
3. machine devices as reference
1.Magnetic Power Tension Pay Off stand
1. double head tension pay off stand
2. Dancer / straigter
3. 80mm Main extruder
4. Automated loader & dryer
5. Auto central Crosshead
6. Single /Double layer Moving trough
7. Main cooling trough
8. Water wiper
9. Digital Diameter controller
10. Mark printer(selectable)
11. Accumulator
12. Capstan
13.15KV Spark tester
14. Meter counter
15. Dual shaft type Take up
16. Master control cabinet
17.35 strip extruder machine
| Model: | HOOHA-80+35 | Consisting Components |
| Pay off bobbin size: | 400-630 mm | Pay off stand | 1 |
| Screw size: | 80mm | Dancer | 1 |
| Motor control: | 30 kw inverter | 80mm extruder | 1 |
| Screw speed: | 110 rpm | loader & dryer | 1 |
| Output capacity: | 210 kg/hr | Crosshead | 1 |
| Max. accumulating length | 200 m | Moving trough | 1 |
| Finished cable diameter | 2.0---20.0 mm | Main cooling trough | 1 |
| Max. line speed: | 200 m/min | Water wiper | 1 |
| | | Diameter controller | 1 |
| | | Mark printer | 1 |
| | | Accumulator | 1 |
| | | Capstan | 1 |
| | | Spark tester | 1 |
| | | Meter counter | 1 |
| | | Take up | 1 |
| | | Control box | 1
|
4. Why Choose Us?
HOOHA GROUP provide the series solution for the layout design of cable plant, machine matching, shipping and installation. It means you only spend less money on machine. You can enjoy such services and get more money.
1.We are the cable equipment manufacturer.
2.Professional engineer,long-term to research and development for to cable equipment .
3.High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .
4.Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.
5.Technical support and spare parts service.
6.Well-experienced in overseas to support customer with technical,training,operating.
7.Responsible and Good communication and customer service skills,and save time and human cost for customers.
8.Complete Foreign Trade Team.
9.Working efficiently,quickly response to customer needs.
5. Professional and Strong Manufacture and Sales Team:
| HOOHA R&D TEAM |
| Name | Position | working experience | Main research | successful project |
| zanyang Xie | General engineer | 10 years | Drawing and designer | power cable machine |
| xiaohua Hu | Vice general engineer | 8 years | Designer | cate5 cable machine |
| jingxin Liu | cable technology engineer | 15 years | cable making designer | teflon cable machine |
| weihua Li | electrical engineer | 7 years | electrical research | over seas machine install |
| kangyou Wu | produce manager | 6 years | product produce | car cable machine |
| Jack | sells manager | 5 years | export service | 3 times overseas after service |
6.After Service:
1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) After service phone number online
