PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min

Brand Name : Hooha

Model Number : HH-E 80+40

Certification : Iso & Ce Certified

Place of Origin : Guangdong, Dongguan

MOQ : 1set

Price : 505500USD/PER

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000sets/year

Delivery Time : 60 work days

Packaging Details : Film packing

Inlet Wire Diameter : 1～15 mm

Finished Wire Diameter : 2～20 mm

Cross Sectional Area : 1～10 square mm

Extrusion Speed : Max 300 m/min

Extrusion Capacity : 200 kg/h

Installed Capacity : 65 kva

Voltage : 380V, can be customizeoltagd

Weight : 4500 kg

Measurement (L*W*H) : 26*3.5*3.5 m

Workers recommendation : 3 workers

Contact Now

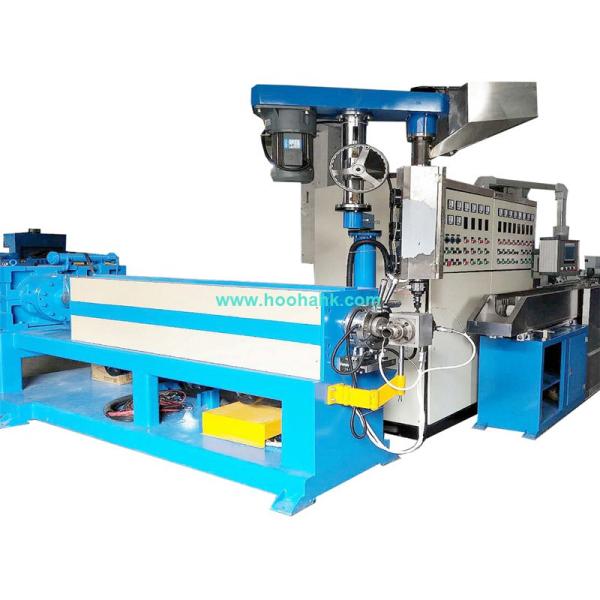

HH-E-80+40 Extrusion Machine

Product Description

PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.

Specification
No. Items Features
1 Inlet Wire Diameter 1~15 mm
2 Finished Wire Diameter 2~20 mm
3 Cross Sectional Area 1~10square mm
4 Extrusion Speed Max300m/min
5 Extrusion Capacity 200kg/h
6 Installed Capacity 65kva
7 Voltage 380V, can be customized
8 Weight 4500 kg
9 Measurement (L*W*H) 26*3.5*3.5 m
10 Workers recommendation 3 workers
Main Parts
1 400-630 motorized pay-off stand
2 5-wheel Straightening device
3
  1. wheel tension stand


4 80 Host extruder
5 80 Adjustable extrusion head
6 Φ40mm vertical injection machine
7 75KG Automatic drying and feeding machine
8 PLC Electric control box


9 1.5m Movable water tank with cover
10 Diameter tester
11 High speed printing machine
12 12m Fixed water tank with cover and leak-proof


Details Images
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min​The straightening device
1. Wheels 5*Φ60mm, dual grooves on each
2. Treatment Chromed and anodized for long-term usage
3. Bearing 6000, 6202
4. Material Q-235-A/Q-245-A/#45
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min

PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min​The pay-off stand
1.Bobbin size 400-630 mm
2.Loading 500 kg
3.Pay-off speed 500 m/min
4.ension 5kg magnetic powder clutch
5.Main motor+Lift motor 3.7 kw + 0.75 kw
6.Material Q-235-A/Q-245-A/#45
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min
Installation Instructions
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min

Our service
1.Engineer guide installation video
2.The machine will doing the test before delivery and will send online test video
3.The drawing for install, electrical,die,screw will send to client
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min

The technical support
1.The machine arrangement in the factory
2.The cable making production technical card
3.The engineer guide the cable making solution
4.The power, air,water arrangement guide
Product packaging
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min

The raw material packing
1.The CCA copper will packing anti the oxidation way
2.The PVC/PE/FEP packing will use the paper box and wood packing
3.The tape also use the paper box add wood package
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min

The machine packing
1.usually use the PE foam package
2.The base need wood package
3.The tape will fixed the machine on the container
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min

The machine package arrange
1.The machine will arrange the drawing of each machine on the container before loading
2.save the space for our client
3.ensure the machine delivery 100% safty
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min

The plastic+wood packing
1.The usually packing way is plastic packing
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min

The wood packing
1.The wood package will according to the customer's inquiry then design to wood packing
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min

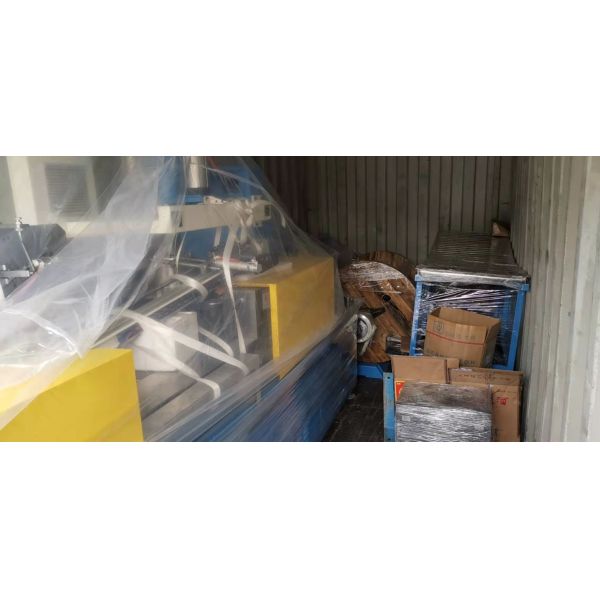

The fixed by steel or tap
1.The machine will fixed by the steel rope and Tap in the container
Why Choose Us
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min

The quality and service system
1.10 years export experience will support our client
2.The payment way more choice
3.The delivery control by engineer team more on time
4.The quality system control by engineer more reach our clients target
5.The after service more humanization from HOOHA team
Exhibition
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min
Company Profile
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min
Where
the company is based in Humen Town, Pearl River Delta, Dongguan city, Southeast China.
Business
1.wire and cable
2. wire and cable equipment
3. Cast aluminum hardware
What
Being an innovative Foreign trade enterprises for foreign high-quality enterprises and Chinese high-quality enterprises.
we have been mainly engaged in wire and cable equipment
spare, wire and cable and die casting parts export business.
major business
In India, Dubai, Nigeria, Indonesia, The United States , among which there are agents and after-sales service , attending
considerable number of expo every year .
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min

The supplier chain experience
1. Save your time on the project
2.More humanization solution for the project running
3.16 years professional on the cable making solution supplier chain more competition price
4.20 years working experience engineer team guide your cable making solution more safety and quick

Certifications
PVC / PE Insulation Wires And Cable Extruder Machine With Speed 300M/Min
